Testatika Experiments

The objective of these experiments is to try to build a testatika or at least something that works (taps some energy source to produce useful output) by trying to duplicate the testatika.

The testatika is a free energy device often suspected of being similar to a Wimshurst machine or an electrostatic machine of some sort. See the overview page for a more complete description.

Click here for an overview of the testatika

Click here for theories and observations for/of the testatika

Work Done by Author

NEWEST
HV pulsing of magnets
Well insulated HV experiments

Dissimilar metals testing 1 (Jan./Feb. 2005): Volta's contact law says that when two dissimilar metals are brought into contact with each other, a voltage appears between them. Testing was done to see if this would make a difference if the metals were brought close together, as may be happening in the testatika when different metals are rotated close to each other. Results: There was a voltage fluctuation. However, as was learned with the small machine testing below, this may be a normal result of variable capacitance which you may have with the same metals too.

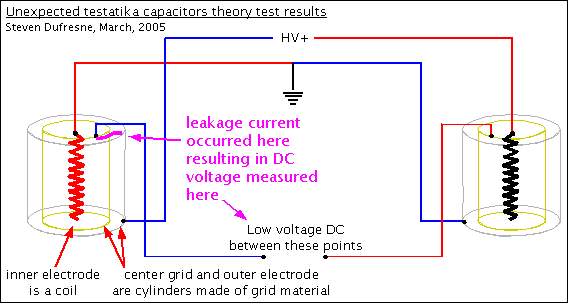

Testatika pots as capacitors theory 1 and testing (Mar. 2005): Theorizing and testing were done regarding what might be in the testatika pots (cylindrical grid capacitors). Results: This testing unexpectedly found a way that lower voltage DC output is possible if high voltage DC is the input. The testing also had some low voltage AC riding on the DC input which was amplified. This is all possible if there is ionization in the air between one of the capacitor electrodes and the output grid. This ionization provides a current path which is the source of the DC.

For work done on testing to see if the testatika pots could be capacitive tranformers go to http://www.hcrs.at/KAPTRAFO.HTM. For English translation, go to altavista's translation website and paste in the address http://www.hcrs.at/KAPTRAFO.HTM.

Small Machine testbed 1 (Mar.-Jun. 2005): Replication was tried of one of the small machines taking an approach of testing and learning about each component as it was added. Testbed 1 was the first version but it suffered from a disk that wobbled too much. As well, due to lack of experience using an oscilloscope to measure something that had a floating voltage (neither electrode grounded), all the measurements were done incorrectly - one of the electrodes was always unknowingly being grounded.

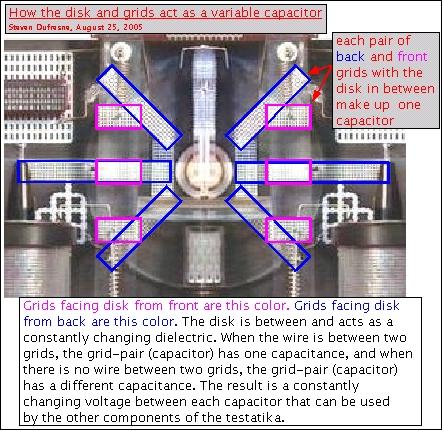

Small Machine testbed 2 (Jul.-Aug. 2005): Improvements were made to testbed 1 to create testbed 2, making it possible to eliminate much of the disk wobble and adding other adjustability improvements. From this, and by using the oscilloscope correctly for floating voltages, a better understanding was gotten of what was going on. Results: The purpose of the disk in this machine is to be a variable dielectric for all the grids that face the disk. These grids act as variable capacitors, their output being an alternating voltage (something that has long been suspected). The following diagrams illustrate this and the experiments can be found here.

Further confirmation of this can be found from results of this testing by another group. This alternating voltage should then be used as input to the components which somehow produce the increased power.

Two other results are illustrated as follows:

However, the design of testbed 2 was still too unstable as the wobble would return if it was knocked too hard, resistance was an issue in the back grids, and other problems made it so that constant readjustment was needed and the same precise measurement could never be gotten two days in a row (though the electrical behaviour was consistent). The main problem, though, was that only about 20mV to 50mV spikes were gotten from of the disk. At least 700mV was needed so that a modern diode could be used to charge up the grid capacitors. Creation of diodes by wrapping coils around magnets (see Tesla's US patent 413,353 "Method of Obtaining Direect from Alternating Currents") was tried but none of these efforts produced any rectification.

Testatika 276mm Disk, 1st Grids - 1st Tests (Aug.-Sep., 2006): Began work on new larger disk with the idea of using it to test the Principle Experiment under the assumption that that's the most basic form that generates excess power.

Testatika Pots with Wimshurst/Spark Gaps 1 - (Dec. 2006-Feb. 2007): Testing with spark gaps at the tops of the pots, similar to EV Gray's conversion switching tube.

Testatika 276mm Disks, 2nd Grids - (Jun. 2007-): Built new discs based on my analysis of the 3kW machine. Testing to follow.

Testatika 276mm Disks, 2nd Grids, 1st vinyl disk - (Jul. 9, 2007): Tried a vinyl disk for the back disk since it's easily chargable.

Testatika 276mm Disks, 2nd Grids, HVDC PSU 3 - (Jul. 20, 2007) Powering with a HV DC power supply and using asymmetric pots to get DC output.

Testatika Magnet Experiments - Series 1 - (Sep. 17, 2007) Tests with a meter magnet and a lecher line in an attempt to replicate the Linden experiment.

Testatika Magnet Experiments - Series 2 - (Dec. 21, 2007) Various tests with UHF POS400+ oscillator circuit applied to meter magnet to try and replicate Linden experiment and to horseshoe magnet to try and replicate what is going on in the disk machines.

Wimshurst machine with 2 sectors as part of an LC circuit - (Jan. 8, 2008) A quick test of doing resonance on the face of a Wimshurst machine disk by modifying two sectors to act as capacitors for an RF LC resonant circuit with a coil wrapped around the pulley.

Testatika Small Machine Testbed 2 - Vinyl backing testing (Apr. 1, 2008) Testing with vinyl on the back in order to provide a high voltage source and give higher voltage oscillations.

Testatika 276mm wire woven disk with well insulated HV back plates (Sep. 2, 2009) Testing with a 276mm wire woven segment disk with well insulated HV back plages.

Testatika Magnet Experiments - Series 3 - High voltage spikes to low voltage DC (Nov. 6, 2009) Pulsing testatika magnets with high voltage spikes and converting those spikes to low voltage DC.
