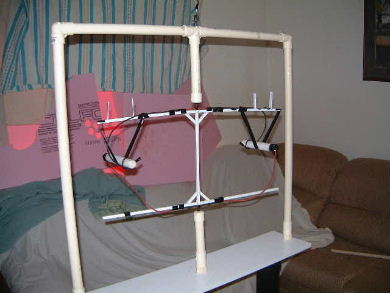

This stator/rotor design is based on one I originally saw used by Transdimensional Technologies, Inc. It is very low friction and the electrical wires coming from the power supply arrive at the center of the rotor from directly above and below.
|
|
|
|
Close-up of where the stator meets the rotor. The top of the rotor has a small screw hot glued on top of it with the tip pointing up in this picture. Its threads have been filed off. After soldering the two connecting wires to it, it was then painted with a thick layer of liquid black electrical tape. The stator has a robertson screw screwed into from the bottom such that you can see the head of the screw clearly (see picture below). Any exposed threads have been filed off and as much exposed area as possible has been painted with liquid black electrical tape. The tip of the screw from the rotor is sitting inside the head of the screw head from the stator. |
|
|
|
|
|
September 19, 2005 - I made the stator taller while keeping the rotor vertically centered. This increases the distance between any device and the horizontal top stator bar, and any device and the bottom horizontal stator bar. This decreases the chance of electrical interaction.
|
|
| ||||||
